Lowest Rsp & Cost for a given BV

+ Scalable source region follows Contact Spacing Rules

+ Retrograde Body modulates Source E-field  and

        * New Tradeoff  for BV versus Drift Length

        * Significantly Improves HCI

+ Optimize Self-Aligned Body

+ Mitigate parasitic NPN - Enhance SOA & EOS-ESD


      "Drops-In"   to your LDMOS  Know-How

Realize HYBRID CONTACT from existing Metal Contact

Seamless Process Integration - at any BCD node!

Poly-to-Poly length scales with Contact Spacing Rules

Hybrid Source & tilted body implants at same  mask/process step


==>  Lowest Rdson and Device Area for a given BV


NOT REQUIRED:   Buried Body   or   N+ Source implants

Device Overview

Hybrid Contact

The existing metal contact forms the Source of  the LDMOS device,

instead of the traditional N+ source, without compromising device operating characteristics.

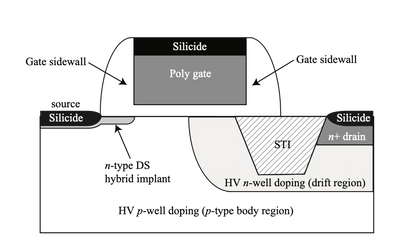

     ONE shallow implant  into TWO regions, forms THREE electric junctions :

  1. Vertical Schottky between the metal source contact and the body,
  2. Lateral ohmic connection under the spacer, and
  3. PN junction to the channel region.


BENEFITS :  Mitigates lateral parasitic NPN bipolar (removes the N-source)

==>   Enhances SOA & ESD robustness, provides Fast-Transient EOS Immunity


Measured silicon:  5V to 100V rated operation

Three Electrical Junctions from One Shallow Implant

==>   enables Source Region to follow Contact Spacing Rules

HYBRID SOURCE = Self-Aligned Body + Hybrid CONTACT

Hybrid Contact

Avoids Punch Through

Avoids Punch Through

Suppress parasitic NPN to Enhance SOA

Gate-Aligned implant  =  Easy Insertion

without compromising device characteristics

Avoids Punch Through

Avoids Punch Through

Avoids Punch Through

Self-Aligned Body is more susceptible to punch through than conventional LDMOS.

==> Lower sub-Vt leak for given Body Doping


ISPSD 2021

Seamless Integration

Avoids Punch Through

Seamless Integration

Shallow Implant Performed after Gate Formation

==>  BJT gain reduced by 10E7

==>  Insensitive to Dose/Energy

I-V over Temp

Fast-Transient EOS

Seamless Integration

Excellent Operation over Temperature

==> Boost Vth by 250 - 300mV

Fast-Transient EOS

Fast-Transient EOS

Fast-Transient EOS

Hybrid Contact survives to It2

Current (Id) is 10X over PN grounded gate

==>  Drain Eng is LIMITING factor

JEDS'21 and EDL'22

COMBINE hybrid source with retrograde body

Insert Retrograde Body

Modulate Source E-Field

Modulate Source E-Field

Non-continuous with body

==>  Extend under poly to enhance channel

No surface doping to degrade Vt, Rsp, Idlin

Modulate Source E-Field

Modulate Source E-Field

Modulate Source E-Field

Overcomes small-radius corner of SAB

==> Enables lower leakage & higher BV

** New HCI tradeoff **

ISPSD'21 - Fig 12

Boost Breakdown Voltage

Modulate Source E-Field

Boost Breakdown Voltage

Enables higher drift region dose

==>  Minimize Rsp for a given BV

ISPSD'21 - Fig 13

Excellent I-V curves

No Mask Sensitivities

Boost Breakdown Voltage

No impact on device operation

ISCE'22 - Fig 9

No Buried Body

No Mask Sensitivities

No Mask Sensitivities

No Snapback - 100ns TLP

ISPSD'21 - Fig 9

No Mask Sensitivities

No Mask Sensitivities

No Mask Sensitivities

Mask variations don't impact channel parameters

==>  Optimize Rsp

ISPSD21 - Fig 14

Contact Us for Detailed Silicon Results

LDMOS transistors using a self-aligned body to produce sub-50 nm channel lengths for the reduction of on-state resistance and device size have been described. The challenges associated with these structures include both lateral and vertical punch-through, and reduced safe-operating-area (SOA).  A novel, ultra-shallow hybrid source combined with a retrograde body region have been shown to be an effective and easily integrated solution to these challenges.
